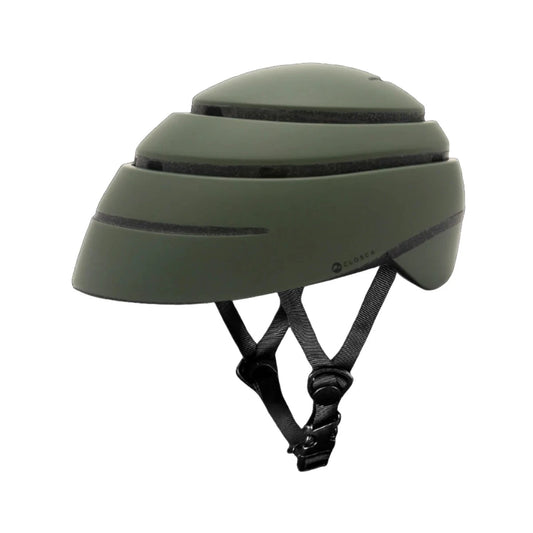

Hjärm is included in the price

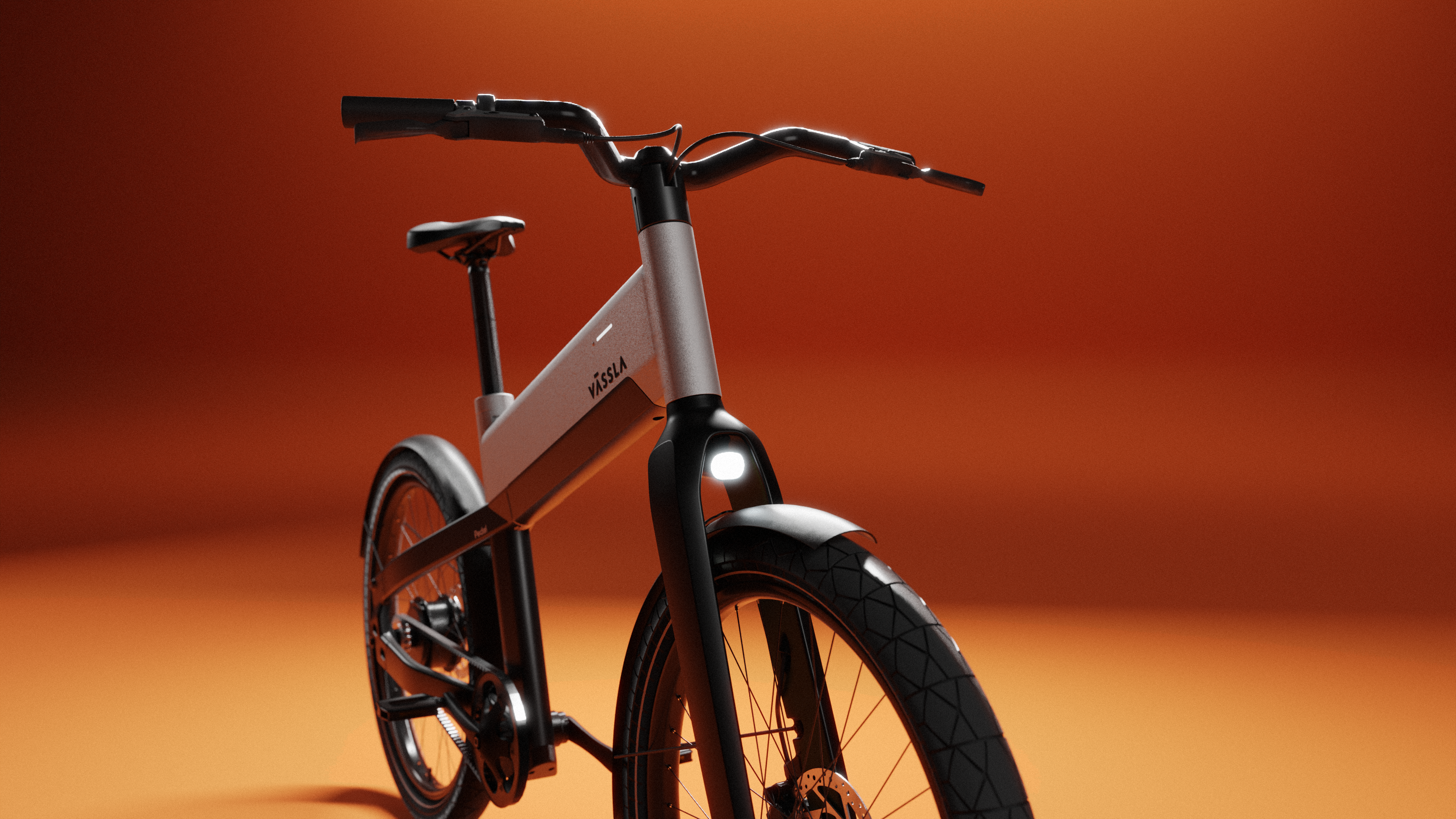

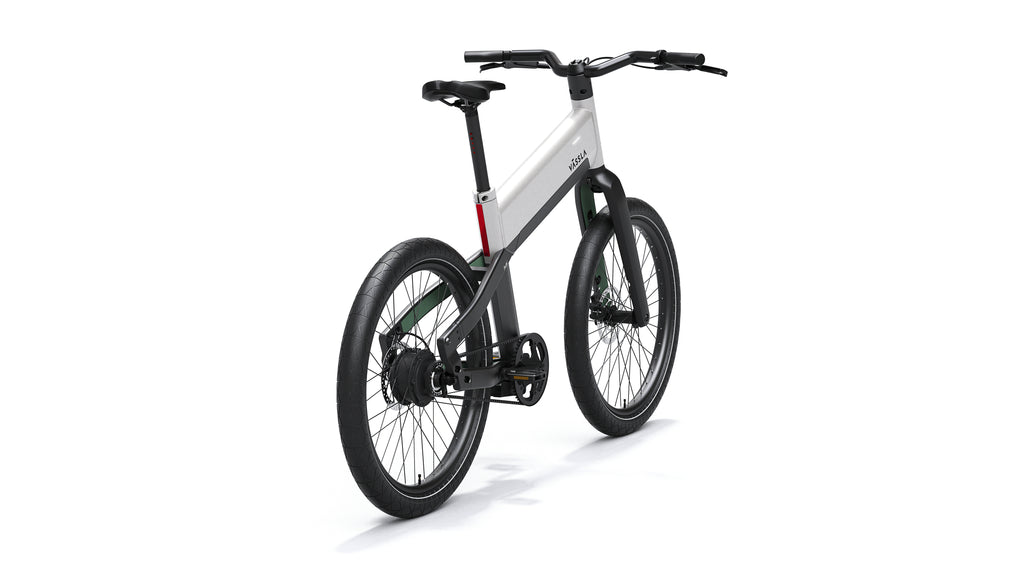

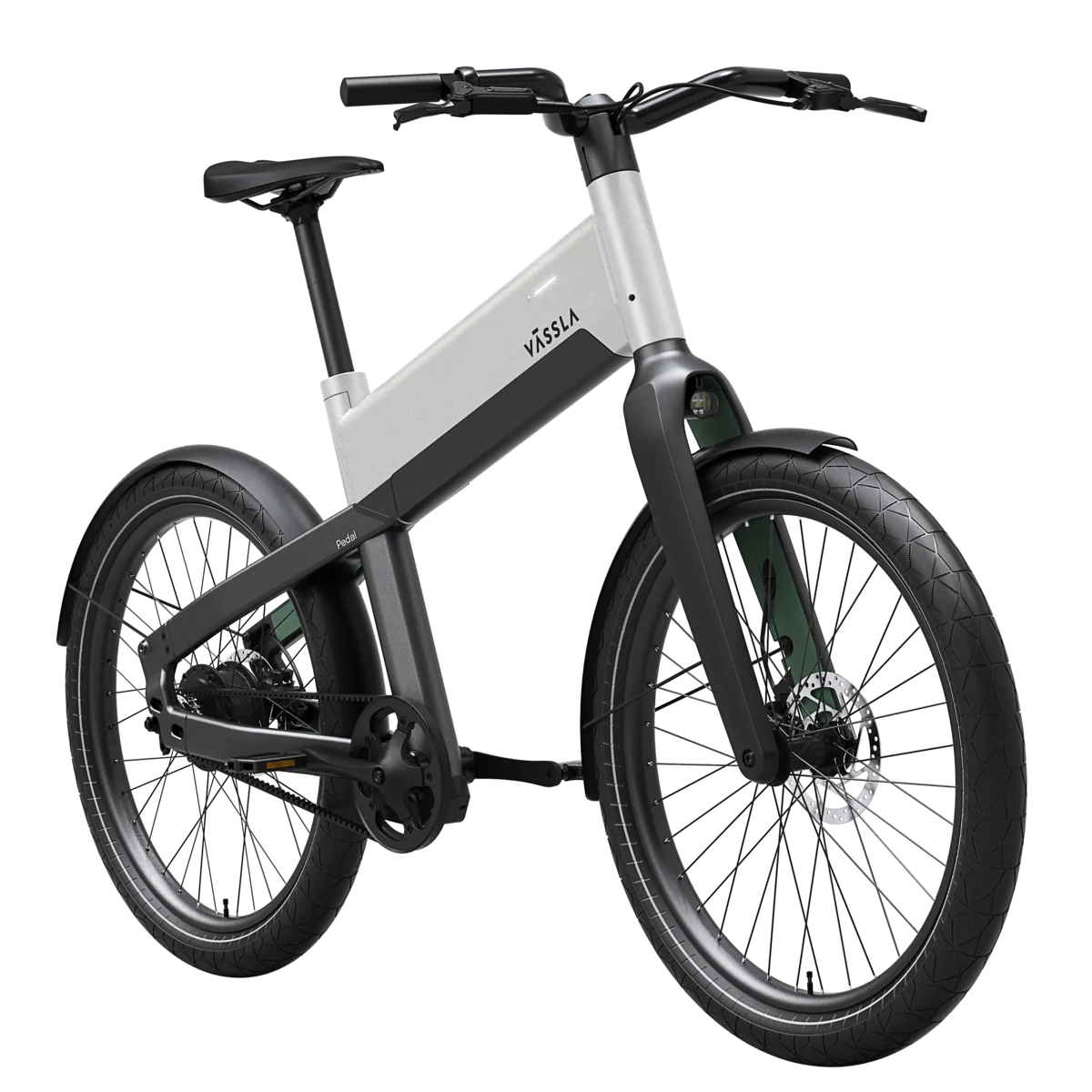

VÄSSLA PEDAL
Vässla Pedal is a bike that breaks conventions and sets a new standard for electric bikes. It is a work of art and a functional commuting monster in one.
- Designed for everyone with a unisex frame and 24-inch tires.
- Scandinavian simplicity for user-friendliness and minimal maintenance.
- No gears, no display, just one button and a powerful 45 Nm hub motor.
- Only premium components.
Info
🚲 Seamless Commuting: With belt drive and a smart torque sensor, Vässla Pedal offers a smooth and responsive riding experience that feels like an extension of you.
🇸🇪 Scandinavian minimalism: Scandinavian simplicity is our secret. Vässla Pedal has no complicated gears or advanced display panels that complicate things. Just a single button and a powerful 45 Nm hub motor in the rear wheel - and you're on your way to adventure!
🌟 Award-Winning Design: Proudly designed and developed in Sweden, our Pedal has been honored with Gold at the German Design Awards 2023.
🔋 Impressive Range: With an electric range of up to 80 km and a 45 Nm rear hub motor, you conquer the city streets with ease.
🏢 Built for City Life: Made from lightweight aluminum, this 21 kg marvel is designed to handle the challenges of urban living.
🚦 Safety First: Equipped with dual hydraulic disc brakes, integrated lighting, and internal cable routing, your safety is our priority.
👫 Designed for everyone
Women, men, short, tall - it doesn't matter! Vässla Pedal is designed to be your best fit, no matter who you are. We believe that every journey should be a source of joy, and your Vässla Pedal will be your companion on that journey.
"So, how about jumping on your very own Vässla Pedal and start cycling towards a greener and more fun future? Order yours here and now and discover the joy of cycling!"
Specification
- Range: Up to 50 km
- Weight: 22 kg (including battery)
- Frame type: Unisex
- Battery: Removable and fully integrated 36V 9.8Ah 10s2p 350Wh
- Brakes: Hydraulic disc brakes Tektro E-385
- Drift: Rem drift with torque sensor
- Motor: 250 W rear navigation motor
- Torque: 45 Nm
- Lock: Pre-drilled frame mount for external lock.
- Mobile holder: Pre-mounted bracket for SP-connect mobile mount
- Cables: Internal cabling.
- Awards: Gold in German Design Awards 2023
- Development: In-house in Sweden and Germany.
- Mounting: Partner in Taiwan.
- Warranty: 2 years
Accessories
Included in the package
- Bicycle support.
- Charger.
- Mudguards.
- Battery
Other accessories

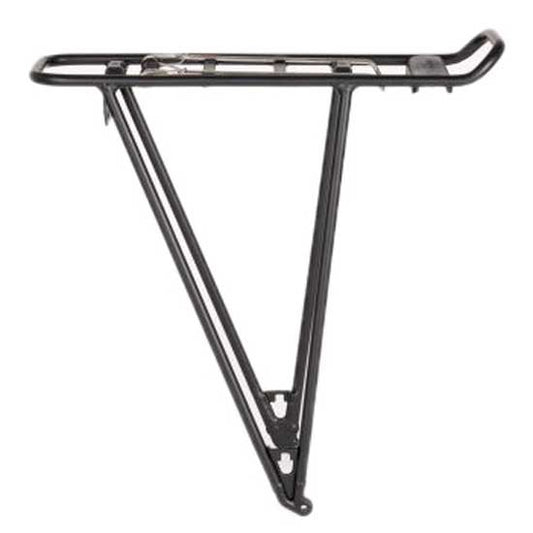

Package holder back.
"Our racks are compatible with ATRANVELO's patented click system 'AVS'. A variety of accessories are thus available from the start."
Of course, you can put a child seat on Vässla PEDAL.
Service
"We recommend contacting the nearest bicycle workshop for service or repair."
The bike workshop makes an initial assessment of the problem, usually they can handle all cases.
"In the event that it is an electrical fault/warranty issue, we at Vässla will be involved to resolve it with the workshop."
See all our service partners here
Properties
Genus: Unisex
Type of frame: Half-step through
Vehicle type: Electric assisted bicycle
Speed: 25 km/h
Wheel size: 24"
Weight without battery: 19 kg
Weight battery:3 kg
Material ram: Aluminium
Material fork: Carbon fiber
Motor type: Motor with hub in the rear wheel
Motor model: Limotec, Vässla specific.
Motor power: 250 W
Motor torque: 45 Nm
Max incline: 10 % (depending on the driver's weight)
Type of battery: Replaceable Li-ion battery pack
Battery cells: Samsung 21700, 10s2p = 2 cells connected in parallel, hence "p", and these 2 pairs are then connected in series, which "s" refers to. = a total of 20 cells.
Battery capacity:360 Wh
Model of charger: Sans Electronics SSLC
Charging Voltage:42V, 3A
Indicator for charger- Green light = ready to charge, Red light = charging.
Range: Up to 100 km
Fork: Carbon fiber
Exchange: Simple exchange system
Driving: Carbon fiber belt
Type of brake: Hydraulic disc brakes
Brake model:Tektro E-385
Handle:Vässla custom-made
Grip: OXO GRIP LOCKABLE Comfort
Steering rod:Vässla custom-made
Seat model: Velo VL-3533
Seat post:Vässla custom made
Model for front light: Lezyne HECTO STVZO E65
Effect of front light: 4W, 210 lumens, 65 Lux

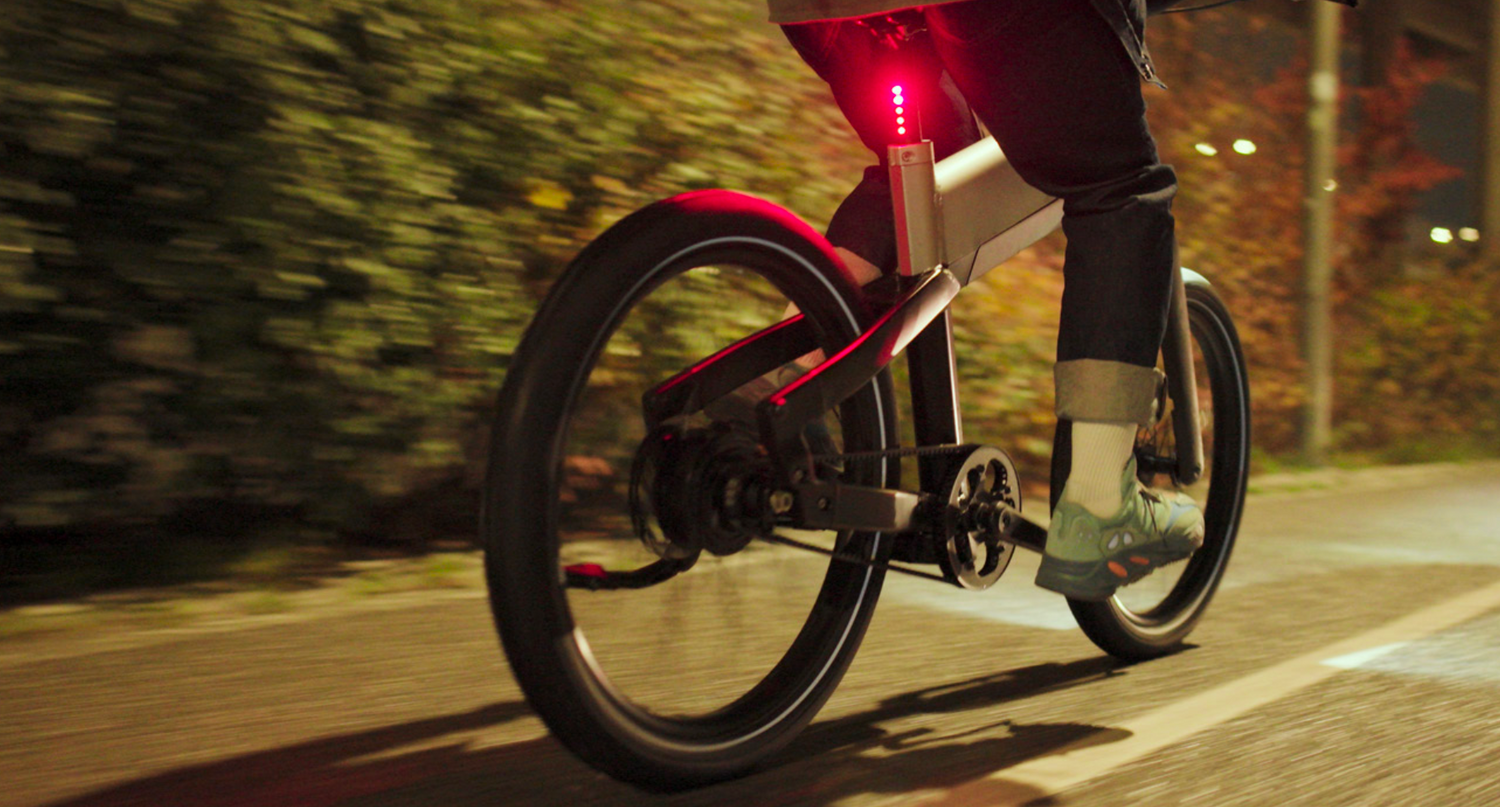

Tail light: Integrated LED lights in the seat post, Vässla custom-made
Tire size: 24"
Tire model:CST C1381, 24"*2.4,61-507
Type of tire tube: Black, puncture-resistant inner layer, with reflective strip
Drift temperature battery: Charging: 0~40°C, discharging: -20~50°C
Storage temperature:-20~60°C (one month)
-20°C ~45°C (3 months)
-20°C ~23°C ( 1 year )
Lifetime: 500 cycles 0-100% (1000 cycles 50-100%)
SOC, light for battery charging status:- Red blinking light <=32V 10%
- Red light >=34V 20%
- Green light >=36V 40%
- Blue light >=37V 50%
No slope too steep

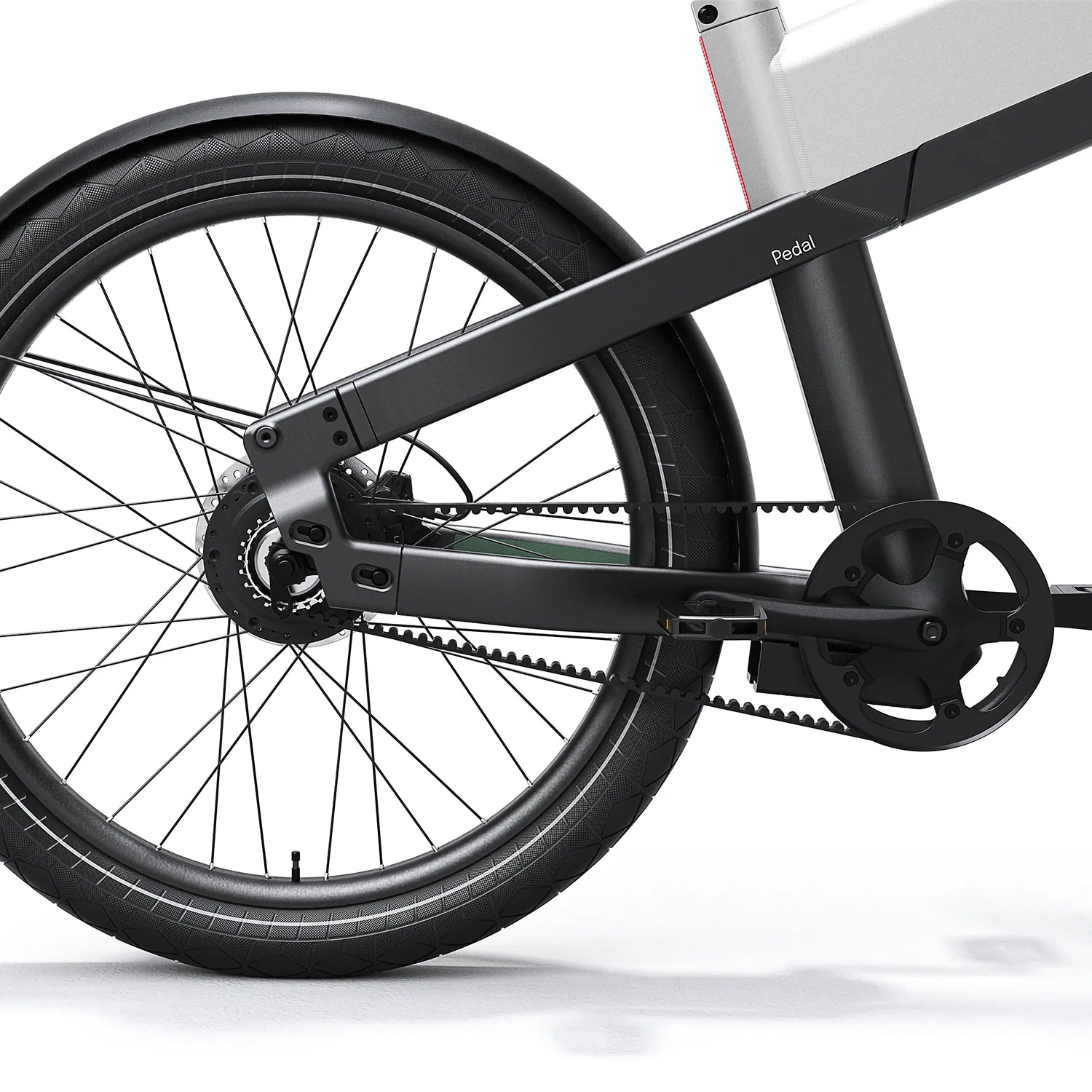

In the rear wheel of Vässla Pedal is the strong 250W/45Nm rear hub motor. Because there is more weight at the back of a bicycle, we have chosen to have rear wheel drive on our Pedal . It provides more grip on uneven surfaces, thus minimizing the risk of skidding and providing better power forward.
The powerful torque helps you tackle even the steepest slopes with ease. With three levels of assistance, you choose how much effort you want to put into pedaling, making it the perfect bike for any type of ride.
Safety is also a top priority, which is why we've equipped Vässla Pedal with Tektro hydraulic double-acting disc brakes, ensuring you can stop in an instant when you need to.
The commuter in focus
The electric bicycle has been specially designed so that you can cycle in the most optimal posture possible. The 60° seating position helps reduce pressure on your wrists and reduce the strain on your neck, meaning you can enjoy your bike ride longer without discomfort.
Whether you're commuting to work, running errands in town or just enjoying a leisurely bike ride, Vässla Pedal will make your riding experience more enjoyable than ever before. So why not upgrade your ride and experience the ultimate driving comfort with Vässla Pedal today?
For a smooth everyday life
Connect the e-bike to your phone to activate our Pedal Assist function. The app is needed to make full use of electric driving.
Riding an electric bike is a great way to lower the barrier to getting out and moving. With Pedal you can enjoy the ride without feeling like you're exerting yourself too much. Say goodbye to the hard journey and hello to the smooth bike ride!
The design of Vässla Pedal
Vässla collaborated with product design genius Christian Zanzotti to produce Vässla Pedal . His broad scope of work spans from automotive and mobility to furniture, consumer goods and lifestyle products, and he has previously worked with international clients such as BMW.
Our internal development and design studies challenge the status quo in materials and manufacturing technology, which in turn form the basis for Vässla's ground-breaking product development.

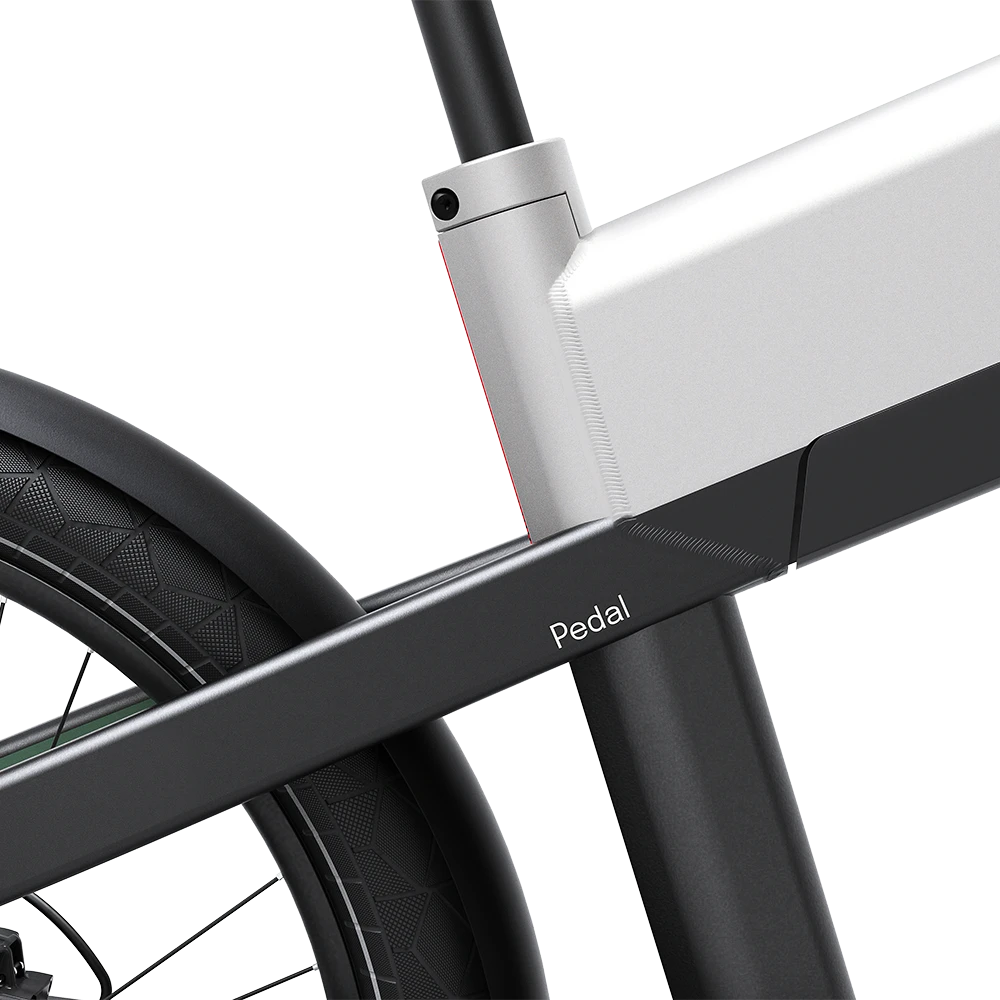

Details

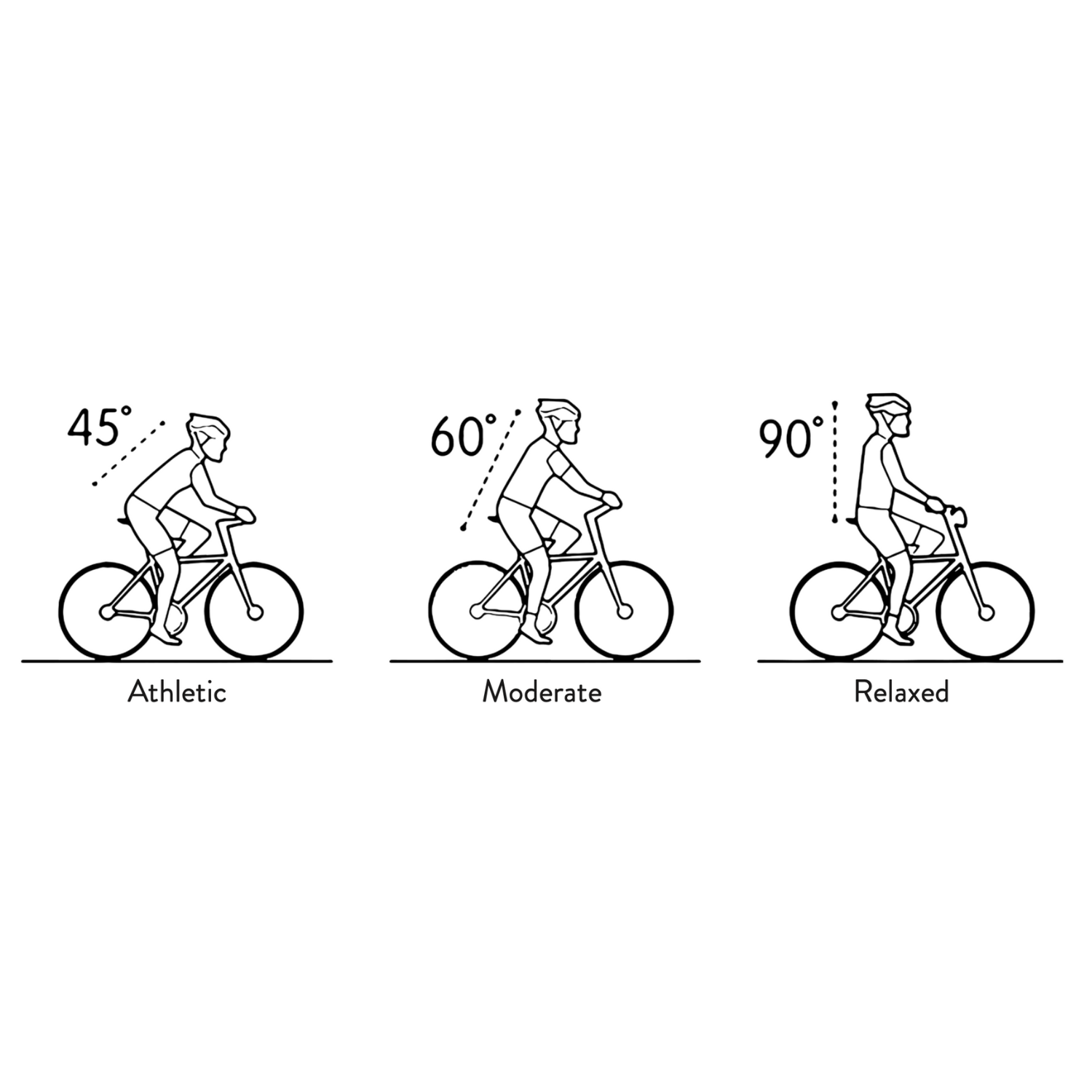

We are best at 60°
With its moderate seating position, Vässla Pedal provides an optimal ergonomic driving experience. Designed to make your driving experience more comfortable and enjoyable by putting less pressure on your wrists or straining your neck. With its half-step frame, Vässla Pedal makes it possible to ride a bike, regardless of height or body type.
Assembly & Instructions
Here you will find all the manuals, user guides, support and other interesting information you might be looking for.
*Please note that for a return to be processed, the product must be in its original packaging and in new condition, without scratches or signs of use. The accessories must not have been used. If the product has an adjustable seat, make sure it is returned in the same setting to avoid leaving marks. This is necessary so that we can sell the product on after the trial period.
